| TE | 111-02496 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to WSI Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories |

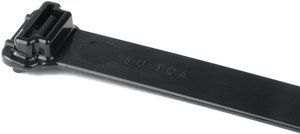

| 描述 | Wide strap is designed to minimize pinching of soft hoses and convoluted tubing Low profile head Clamping rails on the bottom of head to increase grip on round bundles Accommodates a large range of bundle diameters: 9.5mm - 104.7mm Flexible strap Bent tip for quick insertion into mounts |
| Application Tool | MK9P, EVO9, EVO9HT, MK9SST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 300pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | WSI-PA66V0-BK |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 82.5mm |
| Bundle ∅ min. | 9.5mm |
| Length (L) | 307.0mm |
| Min.Tensile Strength | 535.0N |
| Width (W) | 12.7mm |
| Flammability | UL 94 V0 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Operating Temperature - °C | -40 °C to +100 °C |
| GTIN-13 / EAN | 4031026633664.0 |
| Packaging 1 - Weight (kg) | 1.72365kg |
