| TE | 151-07300 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to HDM401 Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Design offers secure alignment to the bundle Possible replacement of cushion clamps and/or metal clamps Eliminates the needs for multiple sized fix diameter clamps For heavy duty cable ties up to 12.7 mm width High tightening torque through metal bushing Easy maintenance of bundle by simply changing the cable tie |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | HDM401-PA66HIRHSUV-BK |
| Product Family | High Torque Mounts |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts |

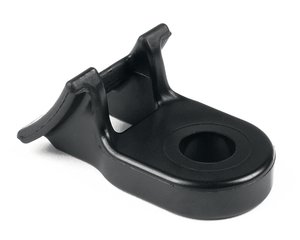

| Short Description | Fixing mount 46x24 mm black |
| 颜色 | Black (BK) |
| Length (L) | 46.0mm |
| Width (W) | 24.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026616551.0 |
| Packaging 1 - Height (m) | 0.9906m |
| Packaging 1 - Length (m) | 0.2m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.06542m³ |
| Packaging 1 - Weight (kg) | 3.835001kg |
| Packaging 1 - Width (m) | 0.3302m |
