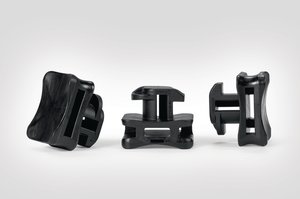

| TE | 151-03193 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to ACFM7W10PT5.3 Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Easy to assemble (quarter turn) Tight fit after assembly For cable ties up to a width of 8 mm Fixing with 24er plug nut possible Cable fastening longitudinally and transversely to the profile possible Centering of the bundled cables due to the deepened shape of the surface |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | ACFM7W10PT5.3-PA66/6HIRHS-BK |
| Product Family | For ITEM10 frame |
| Product Group | Fixing elements for aluminium frames |
| Short Description | The ACFM7W10PT5.3 is specially designed for the ITEM profile with a T-slot width of 10 mm and external dimensions of 50 mm |
| 颜色 | Black (BK) |
| Length (L) | 17.5mm |
| Width (W) | 22.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS) |
| GTIN-13 / EAN | 4031026643700.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 1.381815kg |
| Packaging 1 - Width (m) | 0.41m |
