| TE | 151-00077 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CH20D6 |
| 描述 | Easy to install without the need for a tool One fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes Disc covers the hole to prevent dirt and water gaining access Bundle runs in a set distance to the hole |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | CH20D6-PA66HS-BK |
| Product Group | Bundling Clips with Arrowhead, for Distance Routing |

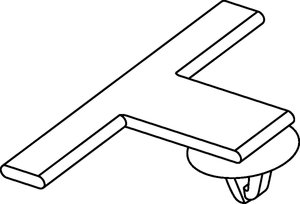

| Short Description | Bundling Clip, round hole 6.4 - 7.0 mm, arrow head, offset, heat stabilised, black |
| 颜色 | Black (BK) |
| Length (L) | 50.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| GTIN-13 / EAN | 5022660302565.0 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.254m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0018m³ |
| Packaging 1 - Weight (kg) | 0.190001kg |
| Packaging 1 - Width (m) | 0.203m |
