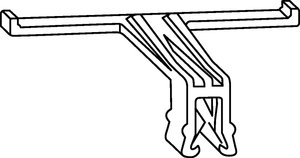

| TE | 151-00022 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to EC30 |
| 描述 | Especially for banding of cables and cable harnesses Fastened onto bundling bar with cable ties or adhesive tape Various base geometries for different routing directions avaliable Integrated double tempered steel spring clamp holds clip firmly in place Ideal for applications where holes or adhesives are not suitable |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | EC30-PA66HIRHS-BK |
| Product Family | Bundling Clips for Edges, 1.0 - 3.0 mm, for Distance Routing |
| Product Group | Bundling Clips for Edges for Distance Routing |
| Short Description | Bundling Clip, edge, high impact modified, heat stabilised, black |
| 颜色 | Black (BK) |
| Length (L) | 50.0mm |
| Width (W) | 9.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +80 °C |
| GTIN-13 / EAN | 4031026250281.0 |
| Packaging 1 - Height (m) | 0.075m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01333m³ |
| Packaging 1 - Weight (kg) | 1.279135kg |
| Packaging 1 - Width (m) | 0.45m |
