| TE | 151-00819 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to EC17 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder |
| 描述 | Edge Clips are incredibly easy to fit Simply push onto a plastic or metal edge Edge Clips 14 to 17 have integrated bar to fasten cable bundle using cable tie or adhesive tape Slotted and flexible bars are ideal for bundle |
| Colour | Grey (GY) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | EC17-PA46-GY |
| Product Group | Bundling Clips for Edges, 1,0 - 3,0 mm |

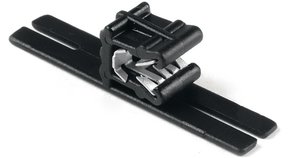

| Short Description | Bundling Clip 46,5x10 mm, for edges, PA46, grey |
| 颜色 | Grey (GY) |
| Length (L) | 46.5mm |
| Width (W) | 10.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature - °C | -40 °C to +150 °C |
| GTIN-13 / EAN | 4031026408620.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.898862kg |
| Packaging 1 - Width (m) | 0.26m |
