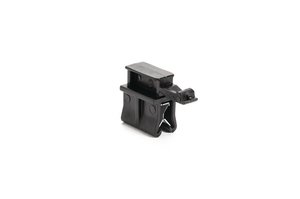

| TE | 151-01042 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to EC54 Competences Cable holder Ratchet P-Clamp for mounting cables and hoses Similar products |
| 描述 | Simply push per hand onto a plastic edge Connector easily installed by simply pushing into place Connection can be released (non-destructive) ntegrated metal clamp holds clip firmly in place Clamp consists of double tempered spring steel Ideal for applications where holes or adhesives are not suitable |
| Colour | Black (BK) |
| Pack Cont. | 5000pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | EC54-PA66HIRHSUV-BK |
| Product Family | 1 - 3 mm, 1.5 - 4 mm and 3 - 6 mm |
| Product Group | Connector Clips for Edges |
| 颜色 | Black (BK) |
| Variant | Edge Clip |
| Length (L) | 24.7mm |
| Width (W) | 10.41mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026493206.0 |
