| TE | 133-03179 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |

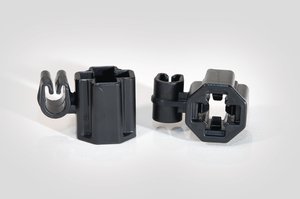

| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to PC5SM6 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder |
| 描述 | Stud fixing and retainer coming as one-piece part Easy to install manually: just push onto stud and click bundle into retainer Allows for post installation of cables In case of maintenance replacement of bundle possible |
| Colour | Black (BK) |
| Pack Cont. | 2000pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | PC5SM6-PA66HIRHSUV-BK |
| Product Family | for cable routing alongside the stud |
| Product Group | Fixing Elements for Weld Studs, Cloverleaf Design |
| 颜色 | Black (BK) |
| Length (L) | 10.0mm |
| Width (W) | 14.73mm |
| Flammability | UL 94 HB |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4031026588780.0 |
