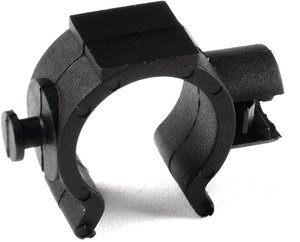

151-14502

产品描述：: Attach before installing pipe or hose Parts labelled ’I’ are interlockable for more installation options Option to mount onto 5mm ’T’ stud or IAHC type of Automatic Harness Clips

TE	151-14502
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to IPC15P Competences Ratchet P-Clamp for mounting cables and hoses Cable holder
描述	Attach before installing pipe or hose Parts labelled ’I’ are interlockable for more installation options Option to mount onto 5mm ’T’ stud or IAHC type of Automatic Harness Clips
Colour	Black (BK)
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	IPC15P-PA66HIR-BK
Product Group	Pipe clip with stud fixing PC15P
颜色	Black (BK)
Bundle ∅ max.	14.7mm
Bundle ∅ min.	13.7mm
Length (L)	27.2mm
Width (W)	10.0mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous good	No
Material	Polyamide 6.6, high impact modified (PA66HIR)
Operating Temperature - °C	-40 °C to +80 °C
GTIN-13 / EAN	5022660308031.0
Packaging 1 - Height (m)	0.025m
Packaging 1 - Length (m)	0.203m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00077m³
Packaging 1 - Weight (kg)	0.251kg
Packaging 1 - Width (m)	0.152m
