| TE | 151-00372 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to AHC3SB Similar products |
| 描述 | Attached to panel before cable installation Simply push cable into place to activate automatic locking feature Parts marked ’I’ are interlockable for more installation options Meaning of extensions: SS & SB = for fir-tree stud Ø 5mm T = for stud Ø 5mm or IAHC type of Automatic Harness Clips |
| Colour | Black (BK) |
| Pack Cont. | 1000pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | AHC3SB-PA66HIRHS-BK |
| Product Family | AHC Series |
| Product Group | Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable |

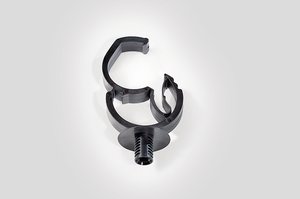

| Short Description | Harness Clip 19-28 mm, automatic close, stud size 5 mm, black |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 28.0mm |
| Bundle ∅ min. | 19.0mm |
| Length (L) | 43.0mm |
| Width (W) | 10.0mm |
| Flammability | UL 94 HB |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026313122.0 |
| Packaging 1 - Qty | 1000.0 |
