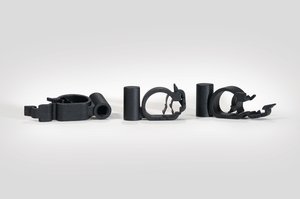

| TE | 150-47700 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to SBF2 |
| 描述 | One-piece fixing and retainer For bundles of up to 13.5 mm Retainer releasable for easy maintenance or post-installation of cables Two additional holders for firm hold of smaller bundles |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | SBF2-PA66-BK |
| Product Family | SBF-Clips |
| Product Group | Fixing Elements for Weld Studs |
| Short Description | Fixing Clip 47.7x18.2 mm, for Weld Studs, black |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 13.5mm |
| Length (L) | 47.7mm |
| Width (W) | 10.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026121093.0 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 1.437478kg |
| Packaging 1 - Width (m) | 0.44m |
