| TE | 151-00680 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to HC48FT6 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder Similar products |

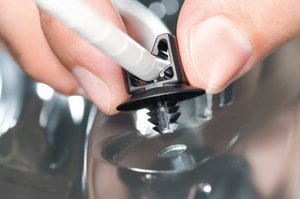

| 描述 | Easy to install without the need for a tool Disc covers the hole to prevent dirt and dust gaining access Bundle diameter is defined Clips to be attached into bore hole Suitable for post-installation of bundles |
| Colour | Black (BK) |
| Pack Cont. | 5000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | HC48FT6-PA66HIRHS-BK |
| Product Family | HC48FT6 with Firtree for bundle diameter 4.8 mm |
| Product Group | Fixing Elements with Fir Tree |
| Short Description | Fixing Elements with Fir Tree for bundle diameter 4.8 mm |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 5.2mm |
| Bundle ∅ min. | 4.3mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026300856.0 |
