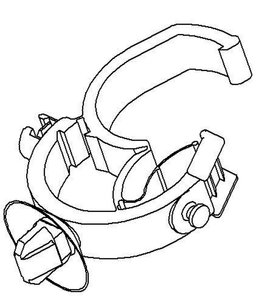

| TE | 151-00383 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to IAHC4CH Competences Cable holder Ratchet P-Clamp for mounting cables and hoses Similar products |
| 描述 | Push and click closure for fixing of wires AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud Vibration resistant, rattlefree and secure hold of bundle In case of maintenance easy replacement of bundle possible 360 degree rotatable for guiding bundles in different directions |
| Colour | Black (BK) |
| Pack Cont. | 450pcs. |
| Package Quantity per | box |
| PART DESCRIPTION | IAHC4CH-PA6HIRHS-BK |
| Product Family | IAHC-Series |
| Product Group | Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable |
| Short Description | Fixing Element 53x13.5 mm, push and click, high impact modified, heat stabilised, black |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 36.0mm |
| Bundle ∅ min. | 27.0mm |
| Length (L) | 55.0mm |
| Width (W) | 13.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6, high impact modified, heat stabilised (PA6HIRHS) |
| Operating Temperature - °C | -40 °C to +80 °C |
| GTIN-13 / EAN | 4031026313160.0 |
