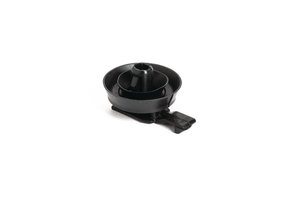

| TE | 151-02078 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to SRAH6.5CC |
| 描述 | Fixing clip offers full 360° rotation For routing of two different bundles Simply clip on a wire or hose Suitable for post-installation of bundles Vibration resistant because of retaining collar |
| Colour | Black (BK) |
| Pack Cont. | 4000Carton |
| Package Quantity per | bag |
| PART DESCRIPTION | SRAH6.5CC-PA66HIRHSUV/TPE-BK |
| Product Family | SRAHCC-Clips, rotatable 360° |
| Product Group | Fixing Elemnts for Tubes and Harnesses |
| 颜色 | Black (BK) |
| Variant | 6.1 - 6.9 mm |
| Length (L) | 22.3mm |
| Width (W) | 22.3mm |
| Flammability | UL 94 HB |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Packaging 1 - Weight (kg) | 0.003kg |
