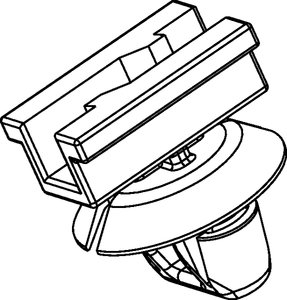

| TE | 155-43802 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CCAMPSFT7.0x12.0 |
| 描述 | Simply push ConnectorClips onto corresponding clip Easy to remove without damage for maintenance, repair or recycling Arrowhead locks into place for secure fixing at all times Designed for oval holes |
| Colour | Black (BK) |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | CCAMPSFT7.0x12.0-PA66HIRHS-BK |
| Product Group | Connector Clips for oval holes |
| Short Description | Connector Clip, oval hole 7.0 x 12.0 mm, arrow head, high impact modified, heat stabilised, black |
| 颜色 | Black (BK) |
| Length (L) | 16.0mm |
| Width (W) | 7.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026219905.0 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 1.100001kg |
| Packaging 1 - Width (m) | 0.44m |
