| TE | 151-02266 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RCC D24 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder |

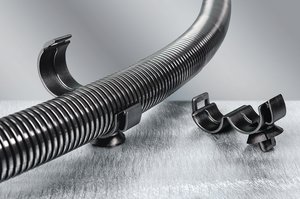

| 描述 | Clamps for corrugated tubing for a variety of nominal diameters Arrowhead simply locks into place Tube is guided accurately by clicking Axial slipping is prevented by the inside profile of the clamp Type RCCD for oval holes 6.2 x 12.2 mm OCTCSFT6,5 clamp for corrugated tubes for nom. diamter of 55-80 mm. CTC-L profile clamp can also fastened to a metal edge |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | RCC D24-PA66HIRHS-BK |
| Product Group | Fixing Elements for Corrugated Tubing, with Arrowhead |
| 颜色 | Black (BK) |
| Length (L) | 33.0mm |
| Width (W) | 22.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026214603.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.533862kg |
| Packaging 1 - Width (m) | 0.26m |
