| TE | 151-00021 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to OCTCSFT6.5 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder Similar products |

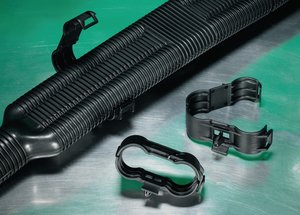

| 描述 | Clamps for corrugated tubing for a variety of nominal diameters Arrowhead simply locks into place Tube is guided accurately by clicking Axial slipping is prevented by the inside profile of the clamp Type RCCD for oval holes 6.2 x 12.2 mm OCTCSFT6,5 clamp for corrugated tubes for nom. diamter of 55-80 mm. CTC-L profile clamp can also fastened to a metal edge |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | OCTCSFT6.5-PA66HIR-BK |
| Product Family | for round holes |
| Product Group | Fixing elements for corrugated tubing, with arrowhead |
| Short Description | Convoluted Tubing Clip, oval hole 6.3 - 6.6 mm, arrow head, high impact modified, black |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 21.5mm |
| Bundle ∅ min. | 18.5mm |
| Length (L) | 64.0mm |
| Width (W) | 20.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified (PA66HIR) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026250250.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.018m³ |
| Packaging 1 - Weight (kg) | 0.601993kg |
| Packaging 1 - Width (m) | 0.3m |
