| TE | 151-02267 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to OC18SFT6.5PT0.7-2.0 |

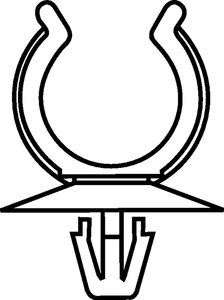

| 描述 | Fixing part with rounded arrowhead to minimise assembly height Ideal for applications where space is limited Simply clip on a wire or hose Bundel diameter is definded Suitable for post-installation of bundles |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | OC18SFT6.5PT0.7-2.0-PA66HIRHS-BK |
| Product Family | with low Arrowhead |
| Product Group | Fixing Elements for Tubes and Harnesses |
| Short Description | Fixing Elements for Tubes and Harnesses |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 21.0mm |
| Bundle ∅ min. | 17.0mm |
| Length (L) | 20.0mm |
| Width (W) | 12.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| GTIN-13 / EAN | 4031026549927.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 0.977815kg |
| Packaging 1 - Width (m) | 0.41m |
