| TE | 151-01843 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to KSFT6.5OC1-3 |
| 描述 | Fixing part with rounded arrowhead to minimise assembly height Ideal for applications where space is limited Simply clip on a wire or hose Bundle diameter is defined Suitable for post-installation of bundles |
| Colour | Black (BK) |
| Pack Cont. | 2500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | KSFT6.5OC1-3-PA66HIRHS-BK |
| Product Family | KSFT6.5OC1-3 with arrowhead for bundle diameter 1.0 - 3.0 mm |
| Product Group | Fixing elements for tubes and harnesses |

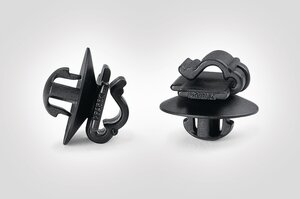

| Short Description | Harness Clip, open, round hole 6.3 - 6.7 mm, arrow head, high impact modified, heat stabilised, black |
| 颜色 | Black (BK) |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026573779.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 2500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.018m³ |
| Packaging 1 - Weight (kg) | 1.619493kg |
| Packaging 1 - Width (m) | 0.3m |
