151-00096

产品描述：: Fixing elements with fir tree or arrow head Simply clip on a wire or hose Clips to be attached into bore hole Bundles can be released at any time

TE	151-00096
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to IPC10AH Similar products
描述	Fixing elements with fir tree or arrow head Simply clip on a wire or hose Clips to be attached into bore hole Bundles can be released at any time
Colour	Black (BK)
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	IPC10AH-PA66HIR-BK
Product Family	IPC-Series
Product Group	Fixing Elements for Tubes and Harnesses, interconnectable

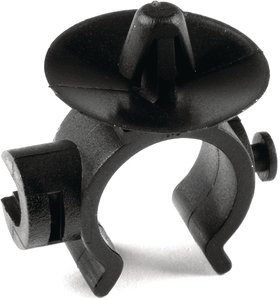

Short Description	Harness Clip, open, round hole 6.3 mm, arrow head, interconnectable, high impact modified, black
颜色	Black (BK)
Bundle ∅ max.	12.5mm
Bundle ∅ min.	8.5mm
Length (L)	22.2mm
Width (W)	10.0mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous good	No
Material	Polyamide 6.6, high impact modified (PA66HIR)
Operating Temperature - °C	-40 °C to +80 °C
GTIN-13 / EAN	5022660307898.0
Packaging 1 - Height (m)	0.025m
Packaging 1 - Length (m)	0.203m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00077m³
Packaging 1 - Weight (kg)	0.3kg
Packaging 1 - Width (m)	0.152m
