151-01377

产品描述：: Push and click closure for fixing of wires Clip is clicked into a specific hole AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud

TE	151-01377
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to AHC45BHG2 Similar products
描述	Push and click closure for fixing of wires Clip is clicked into a specific hole AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
Colour	Grey (GY)
Pack Cont.	700pcs.
Package Quantity per	bag
PART DESCRIPTION	AHC45BHG2-PA46-GY
Product Family	AHC-Series
Product Group	Fixing Elements for Tubes and Harnesses with Automatic Locking Feature

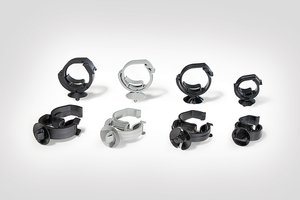

Short Description	Harness Clip, automatic close,oval hole 6.2 x 12.2 mm, arrow head, PA46, grey
颜色	Grey (GY)
Bundle ∅ max.	37.5mm
Bundle ∅ min.	32.0mm
Length (L)	50.0mm
Width (W)	14.0mm
ELV compliant (Article 4 - 2)	YES
Hazardous good	No
Material	Polyamide 4.6 (PA46)
GTIN-13 / EAN	4031026522760.0
Packaging 1 - Qty	700.0
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	4.634001kg
