151-00423
- 类 型:
- 紧固件
- 品 牌:
- 海尔曼太通全球(HellermannTyton)
- 颜 色:
- Black (BK)
- 产品描述:
- Push and click closure for fixing of wires Clip is clicked into a specific hole AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 151-00423 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Application More products in this product group Base Data Product Dimensions Material and Specifications More Information Further information to HC140SFT62x122 Similar products |
| 描述 | Push and click closure for fixing of wires Clip is clicked into a specific hole AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud |
| Colour | Black (BK) |
| Pack Cont. | 1200pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | HC140SFT62x122-PA6HIR-BK |
| Product Family | AHC-Series |
| Product Group | Fixing Elements for Tubes and Harnesses with Automatic Locking Feature |

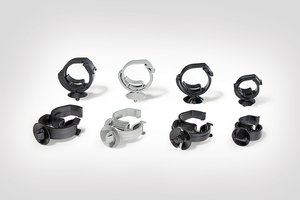

| Short Description | Harness Clip, open, oval hole 6.2 x 12.2 mm, arrow head, high impact modified, black |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 16mm |
| Bundle ∅ min. | 12mm |
| Length (L) | 30mm |
| Width (W) | 14mm |
| Flammability | UL 94 HB |
| Material | Polyamide 6, high impact modified (PA6HIR) |
| Operating Temperature - °C | -40 °C to +80 °C, (+105 °C, 500 h) |
