| TE | 151-00899 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to HC2x7.3AH13-PV |

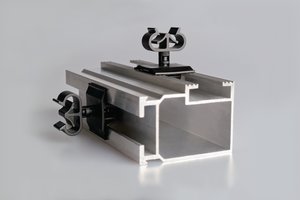

| 描述 | Click wires into clip to be held securely in place 360° rotatable clip, this allows movement of wires if needed Just push the arrowhead into place for very quick and simple fixing |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | HC2x7.3AH13-PV-PA66W-BK |
| Product Family | Harness Clip with arrowhead |
| Product Group | Fixing Elements for Tubes and Harnesses |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 7.3mm |
| Bundle ∅ min. | 4.9mm |
| Length (L) | 26.4mm |
| Width (W) | 24.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| GTIN-13 / EAN | 4031026432410.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.323862kg |
| Packaging 1 - Width (m) | 0.26m |
