| TE | 151-00336 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications More Information Further information to OHC8 |
| 描述 | Cables installed before fixation to a panel, as entry located in the foot part Installation into a through hole Conical flexible wings for a wider range of cable diameters and for a better centering of the bundle Recommended solution in environments subject to vibrations |
| Colour | Black (BK) |
| Pack Cont. | 2000pcs. |
| Package Quantity per | box |

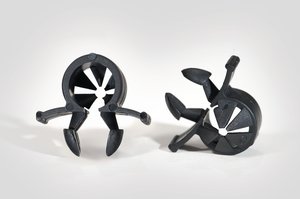

| PART DESCRIPTION | OHC8-PA66HIRHS-BK |
| Product Family | OHC-Series - OHC8 for a maximum bundle diameter of 8 mm |
| Product Group | Fixing elements with arrowhead |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 8mm |
| Bundle ∅ min. | 2mm |
| Length (L) | 12.5mm |
| Width (W) | 12.5mm |
| Flammability | UL 94 HB |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+125 °C, 500 h) |
