| TE |
156-02742 |
| 分类 |
紧固件 |
| 品牌 |
海尔曼太通全球(HellermannTyton) |
| 类型 |

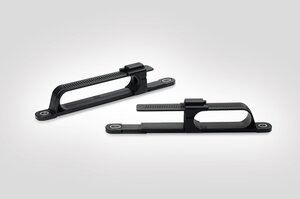

Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to SRC150M8 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder |
| 描述 |
Cables and tubes can be bundled in parallel Can be opened and closed with one hand and without tools due to lever on the sliding element Re-openable, thus cables can be exchanged and added when required Can be screwed vertically or horizontally depending on the equipment After being screwed the locking cover/ lever is pushed onto the cable and thus allows a flexible accommodation of the cables with regards to the number of cables to be routed |
| Pack Cont. |
150 |
| Package Quantity per |
bag |
| PART DESCRIPTION |
SRC150M8-PA6GF30 |
| Product Group |
Screwed Ratchet Clamp |
| 颜色 |
Grey (GY), Beige (BGE) |
| Bundle ∅ max. |
29.0mm |
| Length (L) |
250.0mm |
| Width (W) |
26.0mm |
| ELV compliant (Article 4 - 2) |
YES |
| Flammability |
UL 94 HB |
| Hazardous good |
No |
| Material |
Polyamide 6, glass-fibre reinforced (PA6GF30%) |
| Operating Temperature - °C |
-40 °C to +100 °C |
| GTIN-13 / EAN |
4031026624990.0 |
| Packaging 1 - Type |
bag |
