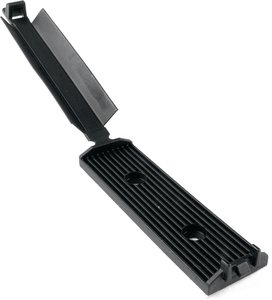

| TE | 151-16500 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to FKH50 Competences Cable holder Ratchet P-Clamp for mounting cables and hoses Similar products |
| 描述 | One-piece fixing mount for flat ribbon cables Increased mounting area offers high strength Quick and easy installation Can be released and re-used easily Flat cable is gently fastened due to soft wings |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | FKH50-PA66HIR-BK |
| Product Family | FKH-Series, screw fixing |
| Product Group | Flat Ribbon Cables Screw Fixing |
| Short Description | Flat Ribbon Cables Screw Fixing 56.5x25 mm black |
| 颜色 | Black (BK) |
| Variant | Mounting clip |
| Length (L) | 56.5mm |
| Width (W) | 25.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified (PA66HIR) |
| Operating Temperature - °C | -40 °C to +80 °C |
| GTIN-13 / EAN | 4031026208756.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 0.709135kg |
| Packaging 1 - Width (m) | 0.45m |
