| TE | 151-14059 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RB5 Competences Ratchet P-Clamp for mounting cables and hoses Cable holder Similar products |
| 描述 | Flat design to use in applications with limited space One-piece self adhesive mount for quick and easy installation Can be used without cable ties offering process optimization Different sizes for various bundle diameters available Cost effective with easy application on smooth, clean surfaces |
| Colour | Natural (NA) |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | RB5-PA66-NA |
| Product Family | RB-Series |
| Product Group | Mounts with cable clip, self-adhesive |

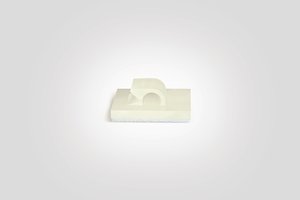

| Short Description | Self Adhesive Clip with flat design 19x19 mm natural |
| 颜色 | Natural (NA) |
| Variant | Closed |
| Bundle ∅ max. | 5.0mm |
| Length (L) | 19.0mm |
| Width (W) | 19.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +60 °C |
| GTIN-13 / EAN | 5022660314797.0 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.141m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00058m³ |
| Packaging 1 - Weight (kg) | 0.110001kg |
| Packaging 1 - Width (m) | 0.136m |
