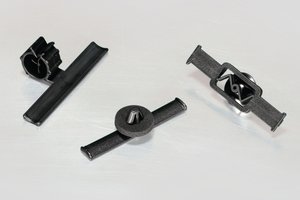

| TE | 151-00431 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to BCSFT6.5 16-3 |
| 描述 | Easy to install without the need for a tool Cable tie head always situated in defined position Arrowhead simply locks into place Disc adjusts tie for pressure from various directions and minimises access of dust and dirt ATS fixing elements can be applied with Autotool 2000, AT2000CPK or ATS3080 |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | BCSFT6.5 16-3-PA66HIRHS-BK |
| Product Family | Bundling Clips with/without Arrowhead |
| Product Group | Bundling Clips with Arrowhead |
| Short Description | Bundling Clip, round hole 6.3 - 6.7 mm, arrow head, high impact modified, heat stabilised, black |
| 颜色 | Black (BK) |
| Length (L) | 55.0mm |
| Width (W) | 8.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026268903.0 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.553478kg |
| Packaging 1 - Width (m) | 0.44m |
