| TE | 155-23701 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to WICKELCLIP-SB5 |
| 描述 | Especially for banding of cables and cable harnesses Fastened onto bundling bar with cable ties or adhesive tape Various base geometries for wide variety of metal gauges and bore diameters |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |

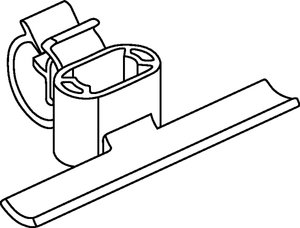

| PART DESCRIPTION | WICKELCLIP-SB5-POM-BK |
| Product Group | Bundling Clips for Weld Studs, movable, with Harness Clip |
| Short Description | Bundling Clip, stud size 5 mm, POM, black |
| 颜色 | Black (BK) |
| Length (L) | 60.0mm |
| Width (W) | 36.4mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyacetal (POM) |
| Operating Temperature - °C | -40 °C to +90 °C, (+110 °C, 500 h) |
| GTIN-13 / EAN | 4031026216188.0 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.05333m³ |
| Packaging 1 - Weight (kg) | 2.217135kg |
| Packaging 1 - Width (m) | 0.45m |
