| TE | 151-00630 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to Universal Clip sealed Similar products |

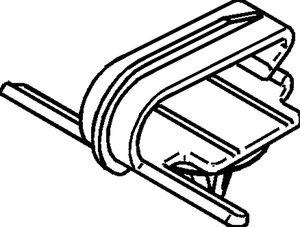

| 描述 | Fixing part with rounded arrowhead to minimise assembly height Ideal for applications where space is limited Simply clip on a wire or hose Bundle diameter is defined Suitable for post-installation of bundles |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | Universal Clip sealed-PA66HS-BK |
| Product Family | Universal Clip sealed |
| Product Group | Fixing Elements with Arrowhead for Tubes and Harnesses |
| 颜色 | Black (BK) |
| Length (L) | 30.4mm |
| Width (W) | 9.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| GTIN-13 / EAN | 4031026292694.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.203135kg |
| Packaging 1 - Width (m) | 0.45m |
