| TE | 156-01721 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Content Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50RDHEC4A Competences Cable holder Accessories Similar products |

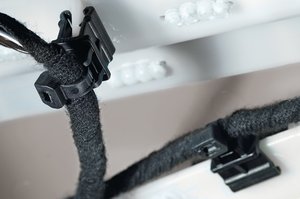

| 描述 | Pre-assembled 2-piece fixing tie with EdgeClip Cable tie head can be moved after bundling EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm For edges of 1 - 3 mm |
| Application Tool | MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Natural (NA), Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50RDHEC4A-PA66/PA66HIRHS-NA/BK |
| Product Family | EdgeClip-Series, 1.0 - 3.0 mm, top fixing |
| Product Group | 2-piece fixing ties for edges |
| Short Description | 2-piece fixing ties for edges, 1.0 - 3.0 mm, top fixing 210x4.7 mm, pa66 / pa66hirhs, natural / black |
| 颜色 | Natural (NA), Black (BK) |
| Tie Closure | doublehead |
| Bundle ∅ max. | 19.0mm |
| Bundle ∅ min. | 4.0mm |
| Length (L) | 210.0mm |
| Min.Tensile Strength | 225N |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAN/CSA-C22.2 no. 62275 |
| GTIN-13 / EAN | 4031026577753.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.714135kg |
| Packaging 1 - Width (m) | 0.45m |
