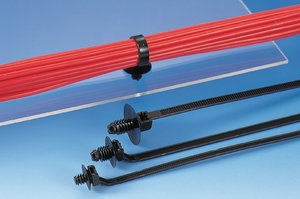

| TE | 157-00122 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to OS170-FT7-LH Competences Cable holder Accessories Similar products |
| 描述 | Cable tie head always situated in defined position Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises access of dust and dirt Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes |
| Application Tool | MK6, MK9P, MK21, EVO9, EVO9HT |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | OS170-FT7-LH-PA66HSUV-BK |
| Product Family | Fir Tree Parts FT7 |
| Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 30mm |
| Bundle ∅ min. | 1.6mm |
| Length (L) | 170mm |
| Min.Tensile Strength | 147N |
| Thickness (T) | 1.4 |
| Width (W) | 5.3mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4944387103137.0 |
