| TE | 156-02672 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to X120RPF12T6or8 Competences Cable holder Similar products |

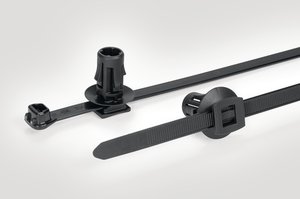

| 描述 | Pre-assembled 2-piece fixing tie with arrowhead foot part Cable tie head can be moved after bundling Easy to assemble without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressure from various directions and minimises access of dust and dirt |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 200pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | X120RPF12T6or8-PA66HS/PA66HIRHS-BK |
| Product Family | 2-piece fixing ties with arrowhead, with disc, for round holes |
| Product Group | 2-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-piece fixing tie with arrowhead foot part for heavy duty applications |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 100.0mm |
| Bundle ∅ min. | 10.0mm |
| Length (L) | 369.0mm |
| Min.Tensile Strength | 535N |
| Width (W) | 7.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026620602.0 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 200.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03074m³ |
| Packaging 1 - Weight (kg) | 0.589597kg |
| Packaging 1 - Width (m) | 0.545m |
