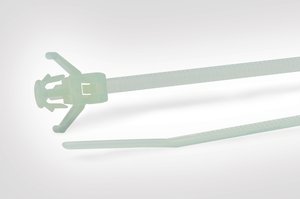

126-00196
- 类 型:
- 紧固件
- 品 牌:
- 海尔曼太通全球(HellermannTyton)
- 颜 色:
- White (WH)
- 产品描述:
- It is possible to fix on thin panels (0.4-2.0mm).
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 126-00196 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LRT18RWPM4.8 Competences Cable holder Similar products |
| 描述 | It is possible to fix on thin panels (0.4-2.0mm). |
| Colour | White (WH) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | LRT18RWPM4.8-PA66V0-WH |
| Product Family | 1-piece fixing ties with arrowhead, with wings, releasable, for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with wings, releasable |
| Releasable Closure (Yes/No) | Yes |
| 颜色 | White (WH) |
| Bundle ∅ max. | 20mm |
| Bundle ∅ min. | 1mm |
| Length (L) | 110mm |
| Min.Tensile Strength | 100N |
| Thickness (T) | 1.1 |
| Width (W) | 2.5mm |
| Flammability | UL 94 V0 |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387107098.0 |
