| TE | 126-00326 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SOSKSFT6.5S2-E Competences Cable holder Accessories Similar products |

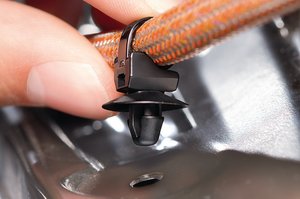

| 描述 | Easy to install without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt Cable tie head always situated in a defined position KSFT-types with specially rounded arrowhead minimise the assembly height |
| Application Tool | MK3PNSP2, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SOSKSFT6.5S2-E-PA66HS-BK |
| Product Family | 1-piece fixing ties with arrowhead, with disc, for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 157.0mm |
| Min.Tensile Strength | 225.0N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Packaging 1 - Weight (kg) | 0.0013kg |
