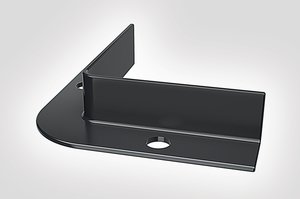

| TE | 133-01480 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to 45MINICHNL Competences Ratchet P-Clamp for mounting cables and hoses Cable holder Similar products |
| 描述 | Angled channel allows specific guidance around corners or obstructions U-Shape channel provides three sides of protection for wire or bundle Protects against abrasion and other environmental factors Types made from PPT20 material convince with a high operating temperature |
| Colour | Black (BK) |
| Pack Cont. | 4000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | 45MINICHNL-PPTD20-BK |
| Product Family | Modular and interchangeable cable routing system |
| Product Group | Mini cable channel family |
| 颜色 | Black (BK) |
| Variant | 135° |
| Length (L) | 52.0mm |
| Width (W) | 1.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polypropylene 20% Talkum (PPTD20) |
| Operating Temperature - °C | -40 °C to +65 °C |
| GTIN-13 / EAN | 4031026482347.0 |
| Packaging 1 - Height (m) | 0.37m |
| Packaging 1 - Length (m) | 0.585m |
| Packaging 1 - Qty | 4000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.06169m³ |
| Packaging 1 - Weight (kg) | 7.520001kg |
| Packaging 1 - Width (m) | 0.285m |
