151-02874

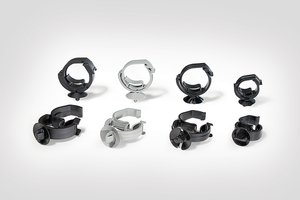

产品描述：: Push and click closure for fixing of wires Clip is clicked into a specific hole AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud

TE	151-02874
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to AHC1AH Similar products
描述	Push and click closure for fixing of wires Clip is clicked into a specific hole AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
Colour	Black (BK)
Pack Cont.	1500pcs.
Package Quantity per	carton
PART DESCRIPTION	AHC1AH-PA66HIRHS-BK
Product Family	AHC-Series
Product Group	Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
颜色	Black (BK)
Bundle ∅ max.	13.0mm
Bundle ∅ min.	3.0mm
Length (L)	26.2mm
Width (W)	10.0mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous good	No
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C	-40 °C to +105 °C
GTIN-13 / EAN	4031026621043.0
