| TE | 211-15250 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to ALU25C Competences Cable holder Ratchet P-Clamp for mounting cables and hoses Similar products |
| 描述 | Simple and secure pipe or cable fixation Can be combined with chloroprene rubber for vibration resistance Ideal for use in high temperature applications Suitable for applications needing strength of metal components |
| Colour | Black (BK) |
| Pack Cont. | 50pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | ALU25C-AL/CR-BK |
| Product Family | Alu-P-Clamp with / without chloroprene insert |
| Product Group | Aluminium P-Clamps |

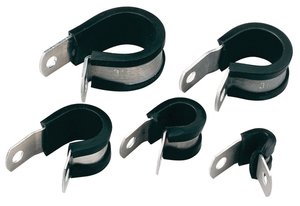

| Short Description | Aluminium P-Clip with Chloroprene Insert 36.5 mm |
| 颜色 | Black (BK) |
| Variant | Closed |
| Bundle ∅ max. | 36.5mm |
| Width (W) | 16.3mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Aluminium alloy (AL), Chloroprene Rubber (CR) |
| Nato number | 5340-12-350-1099 |
| Operating Temperature - °C | -20 °C to +80 °C |
| GTIN-13 / EAN | 4031026129266.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 50.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.880812kg |
| Packaging 1 - Width (m) | 0.26m |
