151-31101

产品描述：: Suitable for applications with minimal space Mounted before cable installation and in line with cable CTAM has 4-way entry design for use in line or at 90° angle to cable run

TE	151-31101
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CTAM1 Competences Self-Adhesive cable tie mounts Similar products
描述	Suitable for applications with minimal space Mounted before cable installation and in line with cable CTAM has 4-way entry design for use in line or at 90° angle to cable run
Colour	Black (BK)
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	CTAM1-PA66-BK
Product Family	CTAM-Series for applications where space is limited
Product Group	Screw fixing mounts

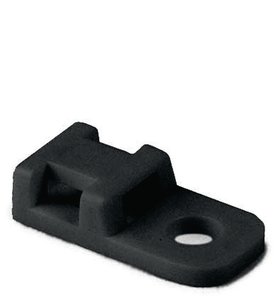

Short Description	Screw Fixing Mount 20.4x10.2 PA66 black
颜色	Black (BK)
Length (L)	20.4mm
Width (W)	10.2mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
Specifications	UL
UL-File Number	E64139
GTIN-13 / EAN	4031026409931.0
Packaging 1 - Height (m)	0.025m
Packaging 1 - Length (m)	0.159m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00038m³
Packaging 1 - Weight (kg)	0.050001kg
Packaging 1 - Width (m)	0.095m
