| TE | 157-00226 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SOSWSP5E Competences Cable holder Accessories Similar products |
| 描述 | Cable tie head always situated in defined position Easy to install without the need for a tool Provides a 5 – 6 mm lateral adjustment possibility Very low profile, stackable design For bundles which need to be routed in different directions |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SOSWSP5E-PA66HS-BK |
| Product Family | WSP-Serie |
| Product Group | 1-Piece Fixing Ties for Weld , moveable |
| Releasable Closure (Yes/No) | No |

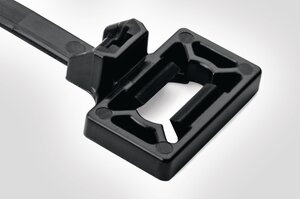

| Short Description | 1-Piece fixing tie 163x4.6 mm, for weld, stud size 5 mm, moveable, heat stabilised, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 163mm |
| Min.Tensile Strength | 200.0N |
| Thickness (T) | 1.35mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 5022660344558.0 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00807m³ |
| Packaging 1 - Weight (kg) | 0.865001kg |
| Packaging 1 - Width (m) | 0.39m |
