| TE | 151-01863 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |

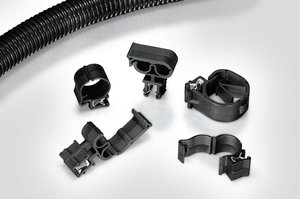

| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to HCEC3.0SP-C Competences Ratchet P-Clamp for mounting cables and hoses Cable holder |
| 描述 | Clips to be pushed onto an edge Low-vibration routing of bigger bundle diameters To be closed single handed, a snap can be felt Bundels can be released at any time Covers are releasable for maintenance or post-installations EC27 and HCEC3.0SP-C: fixing element enables use of smaller bundle diameters EC41: for parallel guidance of two bundles HCEC3.0TPS: specially rounded surface to minimise risk of injury |
| Colour | Black (BK) |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | HCEC3.0SP-C-PA66HIRHS-BK |
| Product Group | Fixing Elements for Tubes and Harnesses, for Edges |
| Short Description | Harness clip 1 - 3 mm, high impact modified, heat stabilised, black |
| 颜色 | Black (BK) |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026576411.0 |
| Packaging 1 - Height (m) | 0.14m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03586m³ |
| Packaging 1 - Weight (kg) | 3.630597kg |
| Packaging 1 - Width (m) | 0.545m |
