| TE | 115-00068 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RT30SSF5 Competences Cable holder Similar products |
| 描述 | Easy to assemble without the need for a tool Cable tie head always situated in defined position Arrowhead simply locks into place Supporting legs provide a secure and firm fixing in areas where space is limited Releasable and therefor reusable “Ladder style” types are very flexible |
| Colour | White (WH) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | RT30SSF5-PA66V0-WH |

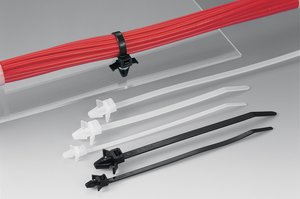

| Product Family | 1-piece fixing ties with arrowhead, with wings, releasable, for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with wings, releasable |
| Releasable Closure (Yes/No) | Yes |
| 颜色 | White (WH) |
| Bundle ∅ max. | 27.0mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 130.0mm |
| Min.Tensile Strength | 196N |
| Thickness (T) | 1.3mm |
| Width (W) | 3.3mm |
| Flammability | UL 94 V0 |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387926811.0 |
