| TE | 115-00067 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RT30SSF5 Competences Cable holder Similar products |
| 描述 | Easy to assemble without the need for a tool Cable tie head always situated in defined position Arrowhead simply locks into place Supporting legs provide a secure and firm fixing in areas where space is limited Releasable and therefor reusable “Ladder style” types are very flexible |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | RT30SSF5-PA66-NA |

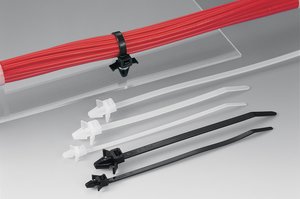

| Product Family | 1-piece fixing ties with arrowhead, with wings, releasable, for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with wings, releasable |
| Releasable Closure (Yes/No) | Yes |
| 颜色 | Natural (NA) |
| Bundle ∅ max. | 27.0mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 130.0mm |
| Min.Tensile Strength | 196N |
| Thickness (T) | 1.3mm |
| Width (W) | 3.3mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387926804.0 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.175m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00089m³ |
| Packaging 1 - Weight (kg) | 0.078301kg |
| Packaging 1 - Width (m) | 0.145m |
