151-12819

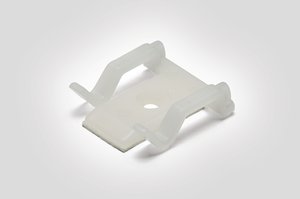

产品描述：: Designed to hold cables, tubes or conduits without cable tie Simply screwed or stuck (TY8H1S) onto panel Side gripping fingers exert firm hold but allow for easy cable removal

TE	151-12819
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to TY8H1S Competences Ratchet P-Clamp for mounting cables and hoses Cable holder
描述	Designed to hold cables, tubes or conduits without cable tie Simply screwed or stuck (TY8H1S) onto panel Side gripping fingers exert firm hold but allow for easy cable removal
Colour	Natural (NA)
Pack Cont.	100pcs.
Package Quantity per	pcs.
PART DESCRIPTION	TY8H1S-PA66-NA
Product Family	TY8H1(S) with flat design
Product Group	Self Adhesive / Screw Clips
Short Description	Clip with flat design Self Adhesive / Screw Fixing 26x23 mm
颜色	Natural (NA)
Variant	Closed
Bundle ∅ max.	3.0mm
Length (L)	26.0mm
Width (W)	23.0mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2 (excluding adhesive)
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Nato number	5975-12-189-6153
Operating Temperature - °C	-40 °C to +85 °C
GTIN-13 / EAN	4031026122205.0
Packaging 1 - Height (m)	0.1m
Packaging 1 - Length (m)	0.125m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0035m³
Packaging 1 - Weight (kg)	0.16477kg
Packaging 1 - Width (m)	0.28m
