| TE | 151-00180 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to YCCFT62x122 |
| 描述 | Connector easily installed by simply pushing into place Connection can be released (non-destructive) One fir tree foot part can be used for a variety of panel thicknesses Disc covers the hole to prevent dirt and water gaining access For twist protection: Variants with additional stick or for oval holes |
| Pack Cont. | 1000pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | YCCFT62x122-PA66HIRHS |

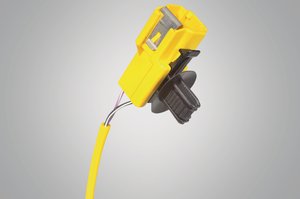

| Short Description | Connector Clip for oval hole (6.2x12.2 mm), with fir tree, high impact modified, heat stabilised, black |
| 颜色 | Black (BK), Grey (GY) |
| Length (L) | 21.08mm |
| Width (W) | 16.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026257723.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 1.206815kg |
| Packaging 1 - Width (m) | 0.41m |
