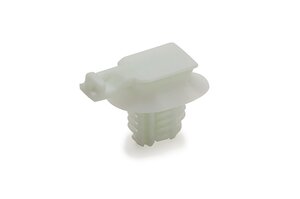

| TE | 151-01259 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CCOVAL |
| 描述 | Connector easily installed by simply pushing into place Connection can be released (non-destructive) One fir tree foot part can be used for a variety of panel thicknesses Disc covers the hole to prevent dirt and water gaining access For twist protection: Variants with additional stick or for oval holes |
| Colour | Natural (NA) |
| Pack Cont. | 5000pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | CCOVAL-PA66HIRHS-NA |
| 颜色 | Natural (NA) |
| Length (L) | 29.34mm |
| Width (W) | 17.53mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4031026479828.0 |
| Packaging 1 - Height (m) | 0.19m |
| Packaging 1 - Length (m) | 0.504m |
| Packaging 1 - Qty | 5000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0294m³ |
| Packaging 1 - Weight (kg) | 5.985001kg |
| Packaging 1 - Width (m) | 0.307m |
