| TE | 126-00101 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50VSL5 Competences Cable holder Accessories Similar products |
| 描述 | Easy to assemble without the need for a tool Cable tie head always situated in defined position Arrowhead simply locks into place Supporting legs provide a secure and firm fixing in areas where space is limited |
| Application Tool | MK3PNSP2, MK7P, MK20, EVO7, EVO7SP |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | box |
| PART DESCRIPTION | T50VSL5-PA66-NA |

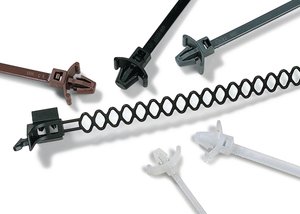

| Product Family | 1-piece fixing ties with arrowhead, with wings, for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Wings |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Arrowhead and Wings PA66 100x4.6 natural |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 16.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 100mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | CAN/CSA-C22.2 no. 62275 |
| UL OCD link | Link |
| UL-File Number | E64963 |
| GTIN-13 / EAN | 5022660337116.0 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.315m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00614m³ |
| Packaging 1 - Weight (kg) | 0.564001kg |
| Packaging 1 - Width (m) | 0.195m |
