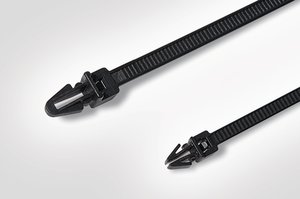

126-00330

类　　型：: 紧固件

品　　牌：: 海尔曼太通全球(HellermannTyton)

颜　　色：: Natural (NA)

产品描述：: Easy to assemble without the need for a tool Fixing tie with arrowhead without wings Arrowhead simply locks into place Cable tie head always situated in defined position

TE	126-00330
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30RSF Competences Cable holder Accessories Similar products
描述	Easy to assemble without the need for a tool Fixing tie with arrowhead without wings Arrowhead simply locks into place Cable tie head always situated in defined position
Application Tool	MK3PNSP2, MK3SP, MK20, EVO7
Colour	Natural (NA)
Identification Plate Position	none
Pack Cont.	500pcs.
Package Quantity per	bag
PART DESCRIPTION	T30RSF-PA66-NA
Product Family	1-piece fixing ties with arrowhead, without wings and disc, for round holes
Product Group	1-Piece Fixing Ties with Arrowhead
Releasable Closure (Yes/No)	No
Short Description	1-piece fixing tie with arrowhead 158x3.6 mm, natural
颜色	Natural (NA)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	32mm
Bundle ∅ min.	1.6mm
Length (L)	158.0mm
Min.Tensile Strength	135N
Width (W)	3.6mm
ELV compliant (Article 4 - 2)	YES
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
Specifications	ANSI/UL 1565, ANSI/UL 62275
UL OCD link	Link
UL Type	11.0
UL-File Number	E64963
GTIN-13 / EAN	4031026599861.0
Packaging 1 - Height (m)	0.035m
Packaging 1 - Length (m)	0.395m
Packaging 1 - Qty	500.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00622m³
Packaging 1 - Weight (kg)	0.430635kg
Packaging 1 - Width (m)	0.45m

Technical drawing Download
