| TE | 151-30405 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CTM1 Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Curved design for additional cable support Simple to install with a screw or bolt Excellent security, particularly in areas of high vibration Mounts are available in various sizes and materials |
| Colour | White (WH) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | CTM1-PA66-WH |
| Product Family | Cable tie mounts with curved design |
| Product Group | Screw fixing mounts |

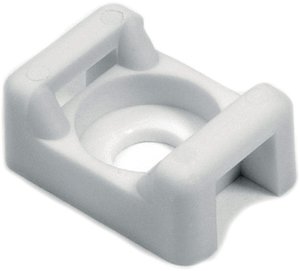

| Short Description | Cable Tie Mount with curved design 14.7x9.4x6.9 mm white |
| 颜色 | White (WH) |
| Length (L) | 14.7mm |
| Width (W) | 9.4mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | UL 62275 |
| UL-File Number | E64139 |
| GTIN-13 / EAN | 4031026312552.0 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.17m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00034m³ |
| Packaging 1 - Weight (kg) | 0.050001kg |
| Packaging 1 - Width (m) | 0.1m |
