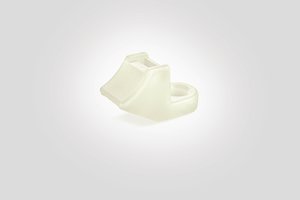

| TE | 151-02258 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CL8 Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Small overall size for areas with limited mounting space Screwable mounts for fixing cable sideways Ideal for securing large, heavier bundles Suitable for cable ties up to 8 mm width |
| Colour | Natural (NA) |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | CL8-PA66-NA |
| Product Family | LKM / CL / FH with curved design for sideways fixing |
| Product Group | Screw fixing mounts |
| Short Description | Screw Fixing Mounts with curved design 27,3x12.5 mm, sideways fixing, natural |
| 颜色 | Natural (NA) |
| Length (L) | 27.3mm |
| Width (W) | 12.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Nato number | 5340-12-389-9843 |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026122472.0 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00127m³ |
| Packaging 1 - Weight (kg) | 0.166526kg |
| Packaging 1 - Width (m) | 0.265m |
